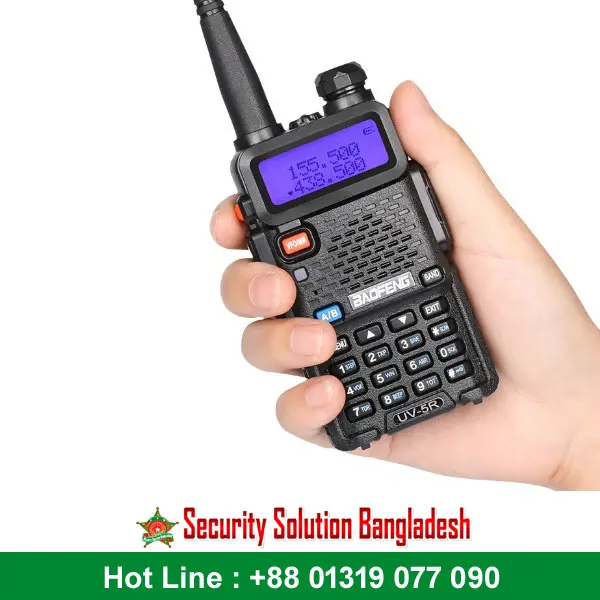

Baofeng UV-5R Dual Band UHF/VHF Radio System Set

Baofeng UV-5R Dual Band UHF/VHF Radio System Set


  • 25KHz/12.5KHz switchable
  • FM Radio (65.0MHz-108.0MHz)
  • Large LCD display
  • Built-in LED flashlight
  • High/low RF power switchable
  • Voice operated transmission (VOX)
  • 50 CTCSS / 104DCS coder & tone searching
  • Dual standby
  • PC programmable
  • Wide/narrow band (25kHz / 12.5kHz)
  • Transmitter time-out timer (TOT)
  • High / Low TX power selectable
  • Busy channel lock-out (BCLO)

Product Description

General Specs:

Frequency Range: 65-108MHz(FM Receive only),136-174MHZ and 400-520MHZ (TX/RX)

Channel No: 128

Frequency Stability: ±2.5ppm

Antenna: High gain dual band antenna

Antenna Impedance: 50Ω

Operating Voltage: DC 7.4V

Mode Of Operation: Simple or semi-duplex

Antenna: SMA – Female

Earpiece: Kenwood Plug type

Dimension: 132 x 60 x 35 mm

Weight: 238g

Power adapter: Input: AC100-240V, 50-60Hz

Output: DC10V / 500mA



Output Power: 5W / 1W (max 5 watt)

Modulation Mode: 16kΦF3E / 11kΦF3E

Maximum Deviation: 5kHz (Wide) / 2.5kHz (Narrow)

Spurious Radiation: 7μW

Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB (Narrow)

Pre-emphasis Characteristics: 6dB

Current: ≤1.6A (5W)

CTCSS/DCS Deviation: 0.5±0.1kHz (Wide) / 0.3±0.1kHz (Narrow)

Intermediation Sensitivity: 8-12mv

Intermediation Distortion: ≤10%
